Versatile Dual-row Female PIN Connections In Electronics

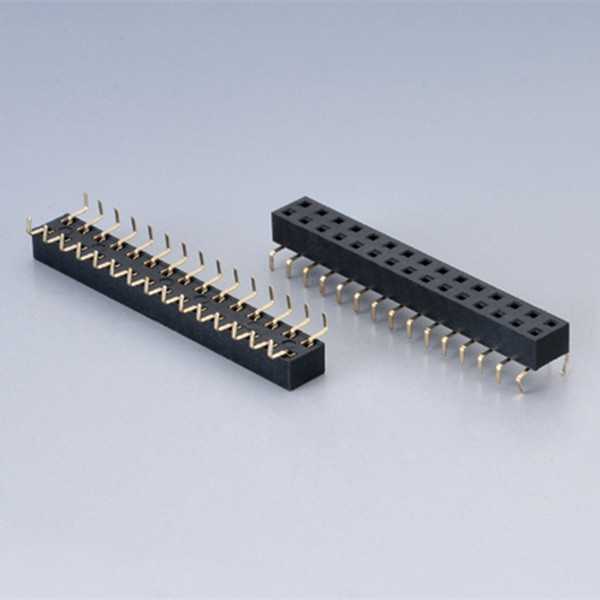

Versatile Dual-row Female PIN Connections In Electronics 2.0mm Pitch Female Connector-2.0x4.3 Dual Row Centipede Pin Specification Description: Product Model:Pitch 2.0mm Row mother 2.0x4.3 Double row centipede feet Plastic height: 4.3mm pin position: 2*2P～2*40P   Material: Terminal material: phosphorus copper Plating of terminal: gold plated on nickel base Plastic material: PA6T,UL94V-0 Plastic colour: black    Electrical Characteristics: Rated current: 2.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 3000MΩ Min @ 500V DC Withstanding Voltage: 500V AC/1min       Mechanical Characteristics: Operating temperature: -40°C to +105°C Soldering temperature: 260+/-5°C, time: 5+/-0.5 sec Solderability: More than 90% of soldered area @ Temperature: 230+/-5°C, Time: 3+/-0.5sec The 2.0mm Pitch Female Connector, specifically the 2.0x4.3 Dual Row Centipede Pin, is a versatile component in electronics and PCB (Pri…
