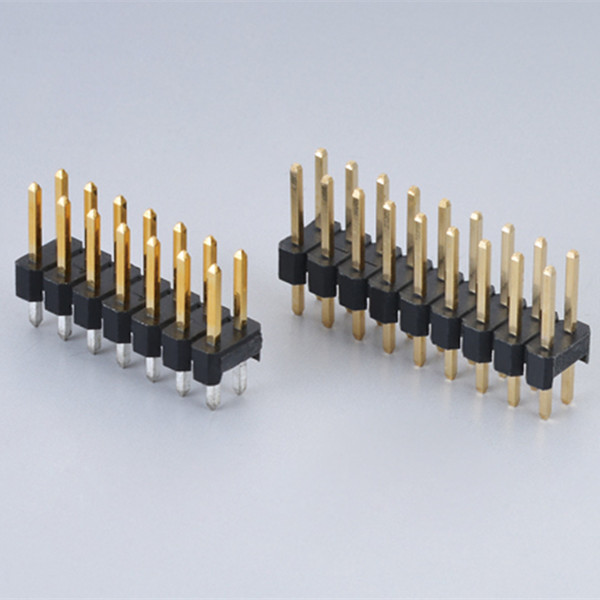

Single Plastic Circuit Board Pin Male Header Connector

Single Plastic Circuit Board Pin Male Header Connector 2.54mm Pitch Pin Male Header Connector - Double Row 180° Single Plastic Specification Description: Model No.: row of pins 2.54mm pitch double row 180° single plastic Plastic height: 1.0mm/1.5mm/1.7mm/2.0mm/2.54mm Pin position: 2*1P～2*40P  Material:           Square material: brass Plating of pin: gold plated on nickel base/tin plated on nickel base Plastic Material: PBT,UL94V-0/PA6T,UL94V-0 Plastic colour: black    Electrical Characteristics Rated current: 3.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 5000MΩ Min @ 500V DC Withstanding Voltage: 1000V AC/1min  Mechanical Characteristics Quadrature pin size: 0.64mm SQ Operating temperature: -40°C to +105°C Soldering temperature (PBT material): 230+/-5°C, time: 5+/-0.5 sec. Soldering temperature (PA6T material): 260+/-5°C, time: 5+/-0.5 sec. Solderability (PBT material): more than 90% of soldered area @ Temperat…
